Blog: Understanding Automotive Qualification Standards for Electronic Components

In this day and age vehicles must support a wide array of advanced electronic components. These components manage key vehicle functions such a safety, propulsion entertainment and communication. To ensure safe and long-term operation the automotive industry has developed important qualification standards to help mitigate component operational risks.

In the following blog sections, we’ll describe the two most prominent automotive qualifications, what the two standards mean, applications and what it takes to become fully certified.

Automotive Qualification Standard: AEC-Q100

Criteria Labs Blog Graphic | Understanding Automotive Certification Standards for Electronic ComponentsWhat is AEC-Q100?

Simply put, AEC-Q100 is a failure mechanism-based stress test qualification for integrated circuits. This automotive industry standard was developed by the Automotive Electronics Council (AEC) in an effort to establish common part-qualification and quality-system standards.







Does my component need to be AEC-Q100 certified?

If your answer is yes to some or all of the below questions, you have a component that needs to be AEC-Q100 qualified.

  • Will the component need to operate in the -40°C to 150°C temperature range?
  • Will the component need to operate for ten or more years?
  • Will the component acceptable failure rate need to be zero?
  • Will the supply lifetime need to be fifteen or more years?

What does it take to become AEC-Q100 certified?

In order for a component to be AEC-Q100 compliant, it needs to guarantee certain levels of reliability after passing testing per the below qualification categories:

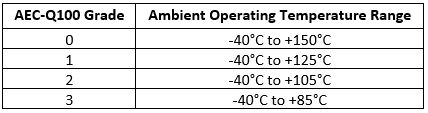

Criteria Labs Blog Graphic | Understanding Automotive Certification Standards for Electronic Components









  • Accelerated Environmental Stress Testing (Ex: Temperature Cycling)
  • Accelerated Lifetime Simulations (Ex: High Temperature Operating Life)
  • Packaging/Assembly (Ex: Wire Bond Pull)
  • Die Fabrication (Ex: Electromigration)
  • Electrical Verification (Ex: Electromagnetic Combability)
  • Defect Screening (Ex: Part Average Testing)
  • Package Integrity (Ex: Shock and Vibration Testing)

What AEC-Q100 grade does my component need to meet?

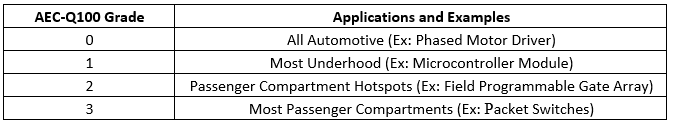

The AEC-Q100 qualification contains a total of four grades. Grades for “in-vehicle” applications are highlighted below along with component and module examples:

Criteria Labs Blog Graphic | Understanding Automotive Certification Standards for Electronic Components











Click here to review the detailed AEC-Q100 qualification documentation from the Automotive Electronics Council (AEC).

Automotive Qualification Standard: AEC-Q200

Criteria Labs Blog Graphic | Understanding Automotive Certification Standards for Electronic ComponentsWhat is AEC-Q200?

The AEC-Q200 is a failure mechanism-based stress test qualification that focuses specifically on passive electronic components. This certification requires a standard for pressure resistance, temperature, and consistent safety specifications for passive components in the automotive industry.







Does my component need to be AEC-Q200 qualified?

If your answer is yes to some or all of the below questions, you have a component that needs to be AEC-Q200 qualified.

  • Will the component need to operate in the -50 to +150 °C temperature range?
  • Will the component need to operate for ten or more years?
  • Will the component acceptable failure rate need to be zero?
  • Will the supply lifetime need to be fifteen or more years?

What does it take to become AEC-Q200 qualified?

In order for a component to be AEC-Q200 compliant, it needs to guarantee certain levels of reliability after passing testing per the below qualification categories:

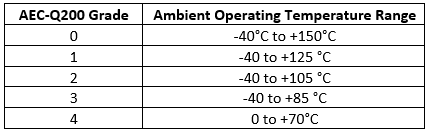

Criteria Labs Blog Graphic | Understanding Automotive Certification Standards for Electronic Components











  • Accelerated Environmental Stress Testing (Ex: Temperature Cycling)
  • Accelerated Lifetime Simulations (Ex: High Temperature Operating Life)
  • Packaging/Assembly (Ex: Wire Bond Pull)
  • Die Fabrication (Ex: Electromigration)
  • Electrical Verification (Ex: Electromagnetic Combability)
  • Defect Screening (Ex: Part Average Testing)
  • Package Integrity (Ex: Shock and Vibration Testing)

What AEC-Q200 grade does my component need to meet?

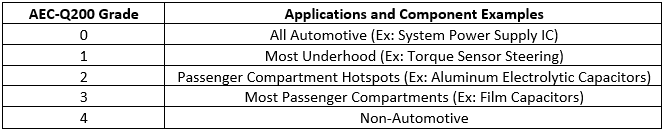

The AEC-Q200 qualification contains a total of five grades. Grades for “in-vehicle” applications are highlighted below along with component and module examples:
Criteria Labs Blog Graphic | Understanding Automotive Certification Standards for Electronic Components











Click here to review the detailed AEC-Q200 qualification documentation from the Automotive Electronics Council (AEC).

Conclusion

Criteria Labs Blog Graphic | Understanding Automotive Certification Standards for Electronic ComponentsTo recap, the purpose of the AEC-Q100 and Q200 qualification standards is to guarantee enhanced levels of module and component survivability in automotive environments. As the automotive industry evolves, implementing next generation technologies, the requirements for these certification standards will continue to grow.

When vetting potential partners for your next AEC-Q100 or Q200 qualification or test project bear in mind that the laboratory performing the work must be ISO 17025:2017 certified. If you would like to learn more about our automotive qualification and test capabilities, connect with our Sales Engineering Team.

*Source: aecouncil.com
